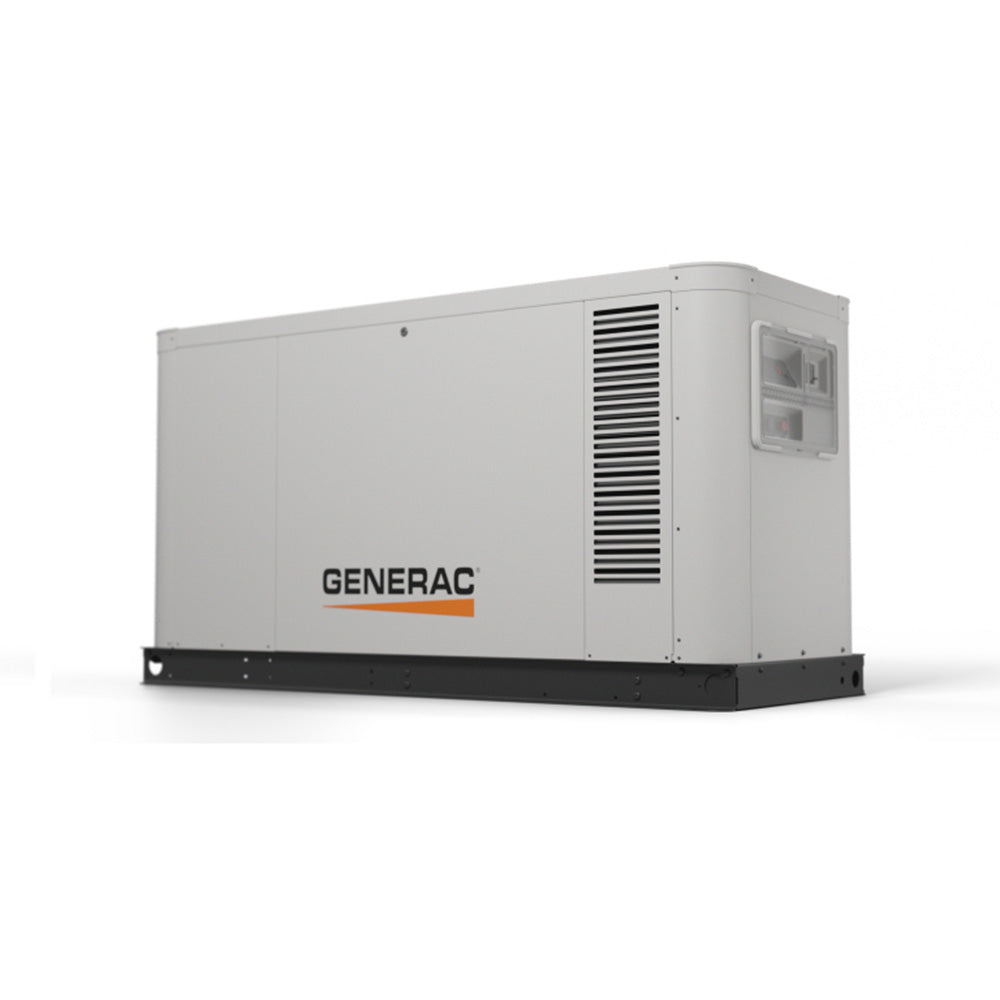

Generac XG04045CNAC 45kW LC 3 Phase Automatic Standby CARB Generator Cheap Sale 100% Authentic

Name: Generac XG04045CNAC 45kW LC 3 Phase Automatic Standby CARB Generator Cheap Sale 100% Authentic
Brand: Agricultural & Construction Mach
SKU: GENERA-16272
Price: 99 USD
Availability: InStock
Rating: 4.3 (976 reviews)

Original price was: $22,399.00.Current price is: $99.00.

Compare

Add to wishlist

SKU: GENERA-16272 Categories: Agricultural & Construction Mach, Farm & Ranch 100% Secure Payment Easy Returns & Replacement Free Shipping On Orders Over $50.

Description

Features

Power Zone 410 Controller, NFPA 110 Capable
Cellular Connectivity for Mobile Link and Fleet
Quiet Operation
Corrosion Resistant Enclosure & Frame
5 Year/2,000 Hour Limited Warranty
Hi Motor Starting, Surge Capacity
Fuel Efficiency
Controller-Selectable Fuel Type – Natural Gas or Propane Vapor
1-Phase or Configurable 3-Phase Voltage Output
Single-Side Regular Maintenance Access
EPA & SCAQMD Exhaust Emissions Certified
As close as 18 in (457 mm) offset distance from structure

What’s in The Box

45kW LC Automatic Standby Generator 3-Phase CARB – XG04045CNAC
Owners Manual

Warranty

5-Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	XG04045CNAC
Brand	Generac
Generator Output
Voltage	XG03245				XG04045
	Natural Gas				Liquid Propane
	Power (kW)		Current (A)		Power (kW)		Current (A)
120/240 1–Phase	32	133	32	133	40		40	139
208/120 3–Phase	32	111	32	111	40		40	120
240/120 3–Phase	32		32		40		40
480/277 3–Phase	32		32		40		40
Voltage Regulation
Type	Electronic
Sensing	All Phases
Regulation	+- 1 percent
Governor Specifications
Type	Electronic
Frequency Regulation	Isochronous
Steady State Regulation	+- 25 percent
Alternator System Specifications
	XG03245		XG04045
	1-Phase	3-Phase	1-Phase	3-Phase
Voltage Output	120/240 V Only	208/120 V; Configurable for 480/277 or 240/120 V with Optional Field-Installable VCC	120/240 V Only	208/120 V; Configurable for 480/277 or 240/120 V with Optional Field-Installable VCC
Circuit Breaker (CB) Size	150 A	Not Included; Optional Field-Installable Kit	200 A	Not Included; Optional Field-Installable Kit
Type	Synchronous		Synchronous
Rotor Insulation Class	F		F
Stator Insulation Class	H		H
Telephone Interference Factor (TIF)	< 50		< 50
Bearings	Sealed Ball		Sealed Ball
Coupling	Flexible Disc		Flexible Disc
Excitation System	Direct		Direct
Engine Specifications
	XG03245	XG04045
Make	Generac
Model	Inline 4 Cylinder
Cylinders	4
Displacement (L)	4.5
Bore	4.5 in
Stroke	4.25 in
Compression Ratio	9.9:1
Lifter Type	Hydraulic
Intake Air System	Naturally Aspirated
Temperature Derate	1.5% per every 5°C above 25°C (1.65% per every 10°F above 77°F)
Altitude Derate	1% per every 100 m above 183 m (3% per every 1000 ft above 600 ft)
Exercise Speed (RPM)	1,200
Operating Speed (RPM)	1,800
Cooling System
	XG03245	XG04045
Coolant	50/50 (50% Ethylene Glycol)
Coolant System Capacity (L (US gal))	11 (2.9)
Water Pump	Belt–Driven
Fan Type	Mechanical
Fan Quantity	1
Maximum Ambient Air Temperature (C (F))	50 (122)
Fuel Types
	XG03245	XG04045
Natural Gas	Yes
NG Pressure (kPa (in. WC))	0.87 – 3.48 (3.5 – 14)
Liquid Propane	Yes
LP Vapor Pressue (kPa (in. WC))	1.74 – 3.48 (7–14)
Fuel Type Configuration	Controller-Selected
Fuel Shutoff Solenoid	Standard, Dual
Fuel Consumption
Rated Load	XG03245				XG04045
	Natural Gas		Liquid Propane		Natural Gas		Liquid Propane
	(m3/h)	(CFH)	(m3/h)	(CFH)	(m3/h)	(CFH)	(m3/h)	(CFH)
25%	4.8	169	8.3	2.2	5.2	184	10	2.6
50%	6.8	240	12.9	3.4	8.2	289	14.5	3.8
75%	9.5	335	15.8	4.2	11.1	392	17.7	4.7
100%	11.5	406	18.5	4.9	14	494	21.7	5.7
Electrical System
System Voltage	12
Battery Charge Alternator (A)	37
Battery Charger (A)	5
Recommended Battery (not included)	Group 27R, 725 CCA Minimum
Maximum Allowable Battery	Group 31R
